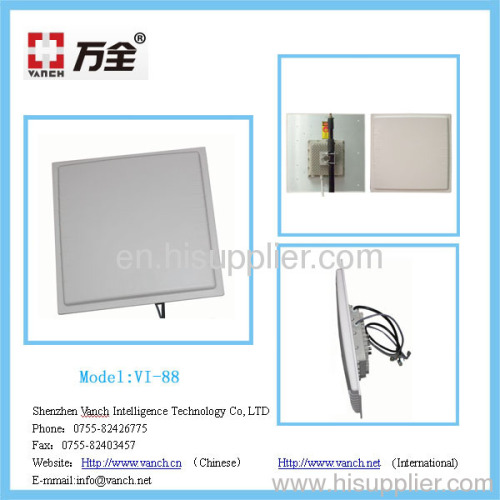

UHF RFID integrated reader VI-88D from China manufacturer - VANCH INTELLIGENT TECHNOLOGY CO.,LTD

Product Detail

Model No.: VI-88D

Production Capacity: 1000pcs per month

Delivery Date: 3-7 working days since get ...

Means of Transport: Air;Express

Packing: Carton

Brand Name: VANCH

UHF RFID Frequency: 865-868MHz/902-928MHz
Integrated Reader, Long range tag reading
Be used in parking lot, warehouse and personel management

Introduction

Application: logistics, access control, ETC, electronic security, manufacturing automation and etc.

Features

1. Reliable industry structure design, workable in varied severe environment.

Specification

Specification
Model#	VI-88D
Performance Index
Frequency range	902-928MHZ(or customized)
FMmode	FHSS or fixed frequency, set by the software
RFoutput	30dBm adjustable
Communication interface	TCP/IP\RS232\RS485\Wiegand26/34
Communicationrate	Serial port 9600115200bps,RJ45 10Mbps
GPI/O interface	12 pin + 4 pin
Powerdissipation	average<15W
Applicationsoftware	Provide with API SDK and VC, VB, Java applicationroutines
Tag OperationPerformance
Reading distance	5-30m equipped with 12dbi antenna(tag dependent)
Airinterface	EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B
Mechanical andElectrical Performance
Dimension	445(L)445 (W)70(H)mm
Powersupply	Equipped with power convertor 220V AC input, +9V/3A DC output
Weight	2KG
Humidity	5% to 95%, non-condensing
Protectiongrade	IEC IP65
Operationtemperature	-20 ºC to +60 ºC
Storage temperature	-40°C to 80°C
